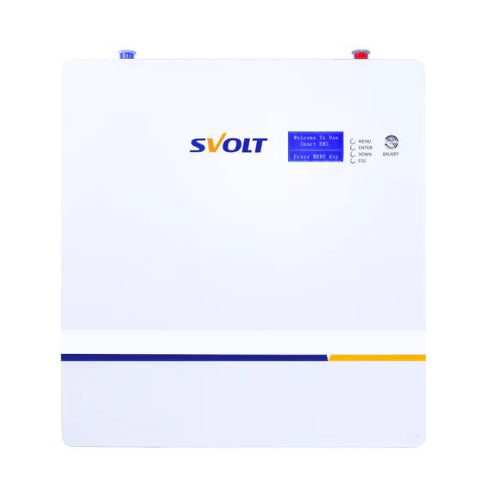

SVolt 5.4kWh 106AH Lithium Ion Battery – Wall Mount

The SVOLT 51.2V 106Ah 5.4kw A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval groups which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. \n \nThe SVOLT 51.2V 106Ah A-Grade Lithium Battery is widely used in industrial, residential, commercial, and private applications. The maintenance-free construction and advanced design features make the Lithium Battery the definitive choice for a wide variety of markets – Like solar and renewable energy storage for electric vehicles, industrial equipment, medical equipment, telecommunications, TVs, and UPS systems. \n

Specifications

\n

\n
• Energy: 5.43kWh
\n
• Installation Type: Wall Mounted
\n
• Battery type-Chemistry: LiFePO4
\n
• Nominal Voltage: 51.2V
\n
• Nominal Capacity : 106Ah
\n
• Weight (Approx.): 44KGS
\n
• Terminal Type: M6
\n
• Terminal Torque: 8.5NM
\n
• Case Material: SPCC
\n
• BMS build-in: Yes
\n
• Internal Resistance:<25mO
\n
• Efficiency – round trip:97%
\n
• Self Discharge per Month:<3%
\n
• Max parallel connectors: 16Pcs
\n
• Series connections: Not Allowed
\n
• Cycle life (0.2C, 25C@80% DOD) Discharge Temperature:6000 Cycles
\n
• Charge Temperature :20 C to 65
\n
• Storage Temperature :0C to 50 C
\n
• LCD Screen: Yes
\n
• Voltage Window: Optional
\n
• Recommend Charge Voltage: 56.0V
\n
• Max Charge Voltage: 58.4V
\n
• Recommend Charge current: 50Amp
\n
• Max Discharging Voltage: 43.2V
\n
• Max Continuous Discharge Current :100A
\n
• Peak Discharge Current: 150A
\n
• C-Rating: 1C
\n

\nPackage Contents: \n

\n
• 1 x SVOLT 51.2V 106Ah A-Grade Lithium Battery
\n
• 1 x Red (Positive) Battery Cable
\n
• 1 x Black (Negative) Battery Cable
\n
• 1 x Ethernet cable
\n
• 1 x Manual
\n
