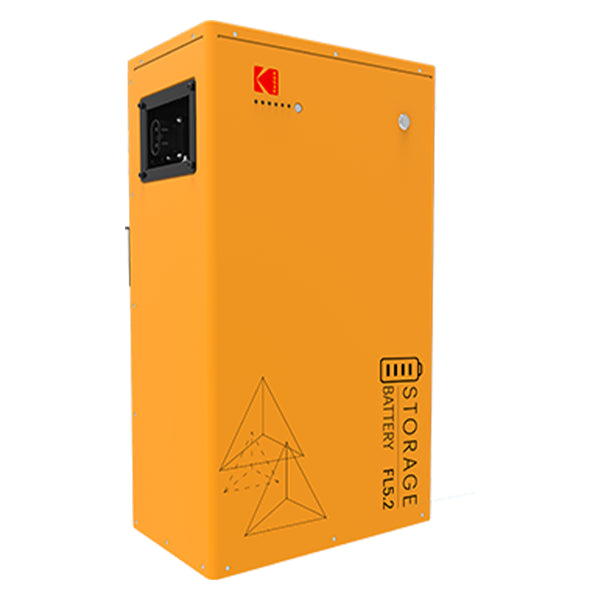

Kodak FL5.2 5.12kWh 48V Lithium Battery

The FL5.2 Kodak battery is a high-performance, scalable battery module. The incredible 1C charge and discharge rate ensure you have the power when it is demanded. Each module has a capacity of 5.12kWh and can parallel up to 12 units for a total of 61.44kWh. \n \nInstallation is easy, with a plug and play solution that can save time when installing. \n

\n
• 5.12kWh parallelable up to 12 units for a total of 61.44kWh
\n
• 90% DoD – High DoD ensures you get the maximum out of the battery
\n
• Easy to install – No racks or extra mounting brackets required. Save valuable time on site
\n
• >6000 Life cycle – perfect for high cycle applications like off-grid or self-consumption systems
\n
• CAN/RS485 communication – Ensure seamless communication with KODAK and SOLIS range of inverter
\n

\nMain power cable and BMS cable are purchased separately – FL5.2-CABLE. Please ensure you purchase the correct quantity dependent on the amount of batteries and the kW rating of your inverter. \n \nFeatures \n

\n
• 5.12kWh Capacity.
\n
• 98% charge and discharge efficiency.
\n
• 90% DoD.
\n
• Wide temperature tolerance.
\n
• Easy to install.
\n
• >6000 Life cycle.
\n
• CAN/RS485 communication.
\n
• Scalable up to 20.48kWh.
\n

\nSpecifications \n

\n
• Nominal Capacity (kWh): 5.12.
\n
• Nominal Voltage (V): 51.2.
\n
• Operating Voltage Range (V): 44.5 – 58.2.
\n
• Depth of Discharge (%): 90.
\n
• Roundtrip Efficiency (%): >99%.
\n
• Nominal Discharge Current (A): 100.
\n
• Nominal Charge Current (A): 100.
\n
• Max. Discharge Current (A) (30s): 150.
\n
• Max. Charge Current (A) (30s): 105.
\n
• Charge/Discharge Efficiency (%) 98%.
\n
• Operating Temperature (°C) -10 – 50°C
\n
• Storage Temperature (°C) -20 – 60°C
\n
• Humidity (%): 4% to 100% condensing.
\n
• Protection Level: IP21.
\n
• Cycle Life: ≥6000.
\n
• Weight (kg): 49.
\n
• Dimensions (H*W*D) (mm): 600*342*207.
\n
• Warranty: 2 years
